Best 12-Inch Subwoofers for Car in 2026: High-RMS Bass, DVC Control & Powerful Sound

If you want a 12-inch subwoofer because you actually want to feel the low end from the driver’s seat, the size alone tells you very little. A 12-inch woofer can work beautifully in a compact sedan, pickup, SUV, or older car, but the final result depends just as much on the amplifier, enclosure, final impedance, and the space available for installation.

That distinction matters with this group. These are all 12-inch car subwoofers, but they are built for very different kinds of systems. Some are high-RMS standalone drivers that need a properly matched amplifier and enclosure, while the Pioneer takes a completely different approach by combining the woofer, enclosure, and amplifier in one unit. A dual voice-coil design can also give you useful wiring flexibility, but only when the final impedance makes sense for the amplifier driving it.

Before buying, check the vehicle and the system you are building around it. You need enough mounting depth, enough enclosure volume for the particular woofer, and an amplifier capable of delivering clean power at the final impedance. Your factory electrical system may handle a moderate installation without drama, while a higher-powered build can demand more attention to wiring, voltage stability, and charging capacity. The goal is not to buy the biggest number printed on the box; it is to build a system where the subwoofer, amplifier, enclosure, and electrical supply actually work together.

For this list, I looked beyond the headline wattage and focused on what matters after installation: RMS power handling, voice-coil configuration, physical fit, enclosure requirements, thermal design, amplifier matching, and the type of bass each subwoofer is realistically suited to produce in a car.

Best 12-Inch Car Subwoofers: Top 2026 Picks for DVC Control & Bass Output

#1. KICKER 44CVX124 CompVX 12-Inch Subwoofer
Best 12-Inch Car Subwoofer for High-RMS Bass, DVC Flexibility, Deep Low-End and Daily-Driver Power

#2. Rockford Fosgate T1D412 Power T1 12-Inch Subwoofer
Best High-Power 12-Inch Subwoofer for Hard-Hitting Bass, 800W RMS Output, DVC Control and Heavy-Duty Builds

#3. Alpine R-Series R2-W12D4 12-Inch Subwoofer
Best 12-Inch Subwoofer for Deep Bass, 750W RMS Power, Controlled Sound and Flexible DVC Wiring

#4. Memphis Audio MJP1222 MOJO Pro 12-Inch Subwoofer
Best 12-Inch Car Subwoofer for High-SPL Bass, 750W RMS Power, Dual 2-Ohm Wiring and Loud Systems

#5. HERTZ Mille Pro MP-300-D23 12-Inch Subwoofer
Best 12-Inch Subwoofer for Sound Quality, Detailed Bass, DVC Performance and Smooth Low-End Response

#6. PIONEER TS-WX1210A 12-Inch Powered Subwoofer
Best Powered 12-Inch Subwoofer for Easy Installation, Built-In Amplifier, Deep Bass and Factory Stereo Upgrades

Expert Tip

A 12-inch subwoofer is one of those car-audio purchases where more watts does not automatically mean better bass. Before ordering, look at the amplifier you already have, the final impedance you can run, and the enclosure you can physically fit in the vehicle. A DVC 4-ohm woofer such as the KICKER or Alpine gives you different wiring possibilities than the Memphis dual-2-ohm design, while the Pioneer takes a completely different route because the amplifier is already built into the enclosure.

Also, don’t judge these subs by the “max watts” number printed in a listing. RMS power is the number I would pay attention to first, because it gives you a much more useful idea of what the woofer is designed to handle continuously. If your amplifier, wiring and enclosure are properly matched, even a lower-rated sub can sound considerably better than a bigger-looking setup that has been thrown together without considering impedance or air volume.

How We Chose These 12-Inch Car Subwoofers

We did not rank these six subwoofers by the largest wattage figure or by how impressive the product box looks. That would make this list easy to write, but not particularly useful to someone actually spending money on a car-audio upgrade.

The first thing we looked at was power handling that makes sense in a real installation. The KICKER, Rockford Fosgate, Alpine and Memphis models are serious standalone woofers, so their RMS capability matters when choosing the amplifier that will drive them. We also separated RMS from peak or maximum figures rather than treating every watt number as if it meant the same thing.

Next came voice-coil configuration and impedance. This is particularly important with this group because the KICKER, Rockford and Alpine use dual 4-ohm configurations, while the Memphis uses dual 2-ohm coils. That changes how the sub can be wired and what amplifier load makes sense. We consider that a buying decision, not just a specification to put into a table.

We then considered enclosure requirements and physical installation. A 12-inch subwoofer may have plenty of room for the cone itself but still fail to fit because of mounting depth, enclosure dimensions or the space available in the vehicle. The Alpine, for example, has a substantial mounting depth, while the Pioneer is already supplied as a powered enclosure. Those differences can completely change which product is the smarter purchase for a particular car.

Build quality was another deciding factor. Heavy-duty baskets, voice-coil construction, cooling provisions, motor strength and overall mechanical design matter more when a subwoofer is expected to play hard for long periods. That is one reason the Rockford Fosgate and KICKER sit high on this list rather than simply following the order of their advertised wattage.

We also considered what kind of listener each product actually suits. The Memphis MOJO Pro makes more sense for someone chasing high output and SPL-oriented performance. The Hertz Mille Pro is more interesting for a buyer who puts greater emphasis on refined bass and sound quality. The Pioneer serves an entirely different buyer who wants a powered, relatively straightforward solution without separately matching a subwoofer and amplifier.

Finally, we checked whether each recommendation gives the buyer a clear reason to choose it over the next option. If two products were virtually identical in purpose, we did not pretend that one was automatically better simply because its specification sheet had a larger number.

That is the approach behind this list: not the subwoofer with the biggest claim, but the subwoofer that makes the most sense for the system you are actually building. A good 12-inch setup is about matching the woofer, amplifier, enclosure and electrical system—not buying one impressive component and hoping the rest takes care of itself.

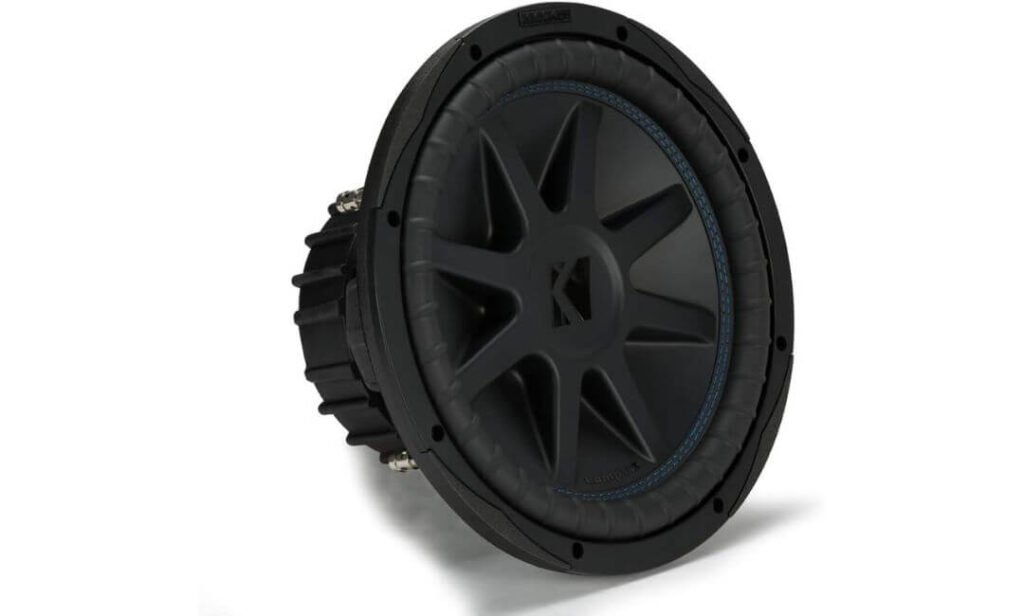

#1. KICKER 44CVX124 CompVX 12-Inch Subwoofer

The first thing I like about this woofer is that it feels built around sustained use rather than a big number printed on the packaging. The 750W RMS rating is substantial enough for a serious daily-driver system, while the thick polypropylene cone, SoloKon reinforcement and ribbed Santoprene surround give the moving assembly the rigidity and support it needs when the bass gets demanding. That combination is particularly useful if you want a 12-inch sub that can hit hard without turning every track into nothing more than noise.

There is also some sensible engineering underneath the surface. The high-temperature voice coil, perimeter venting and UniPlate extended pole piece/backplate are all aimed at managing heat when the woofer is being worked for longer periods. The cast-aluminum basket adds another layer of rigidity while helping the motor structure stay properly supported. Those are the details I would pay attention to if this is going into a system that will actually be used at higher volume regularly.

The dual 4-ohm voice coils are another practical advantage. With one woofer, you can configure the coils for a 2-ohm or 8-ohm final load, depending on the amplifier and wiring approach. That makes amplifier matching much easier than simply buying a sub first and trying to make the electrical side work afterward. Just remember that a 6-11/16-inch mounting depth is still significant, so measure the enclosure or vehicle location before ordering rather than assuming every 12-inch opening has enough room.

(In other words: this is the kind of subwoofer where the enclosure and amplifier deserve the same attention as the woofer itself.)

What We Like About the Build

• 750W RMS is the figure to focus on — enough headroom for a serious bass system without relying on an inflated peak-wattage claim.
• Dual 4-ohm coils give you useful 2-ohm or 8-ohm wiring options with a single driver.
• SoloKon-reinforced polypropylene cone adds stiffness where it matters when excursion increases.
• Thermal management is properly considered, with perimeter venting, a high-temperature voice coil and extended pole-piece/backplate design.
• Cast aluminum basket and substantial suspension give the woofer the kind of physical support I would want in a hard-used daily system.

The One Thing to Check Before Buying

The only real caution is fitment and system matching. At 6-11/16 inches deep, this is not something I would order before measuring the enclosure, and its 750W RMS capability means the amplifier should be selected around the final impedance rather than simply buying whatever mono amp has the largest advertised wattage.

Where Its Strength Really Shows

This is not simply a choice for someone who wants “a 12-inch sub.” It makes more sense for a properly planned car-audio system where the owner wants strong low-frequency output but still cares about how the woofer behaves when the volume comes down.

The enclosure choice can change its character considerably. A properly sized sealed enclosure is the route I would consider when you want tighter, more controlled bass, while a correctly designed vented enclosure can make better sense when maximum output and deeper impact are higher on the priority list. The published enclosure ranges are broad enough to give a builder some flexibility, but that does not mean every box within the range will sound equally good.

The Insider Pro-Tip

If this is going into a sedan, pickup or SUV, do not start the installation by buying the amplifier. Start with the final impedance you want, the enclosure you can physically fit, and the amount of usable power your electrical system can comfortably support. Once those three things are settled, choosing the amplifier becomes much easier.

And there is one small detail that can save you from an expensive mistake: measure the actual enclosure depth around the subwoofer mounting area, not just the hole diameter. The 12-inch cutout tells you whether the cone fits; the 6-11/16-inch mounting depth tells you whether the motor and basket have somewhere to go. That difference is easy to overlook and surprisingly annoying to discover after the box is already installed.

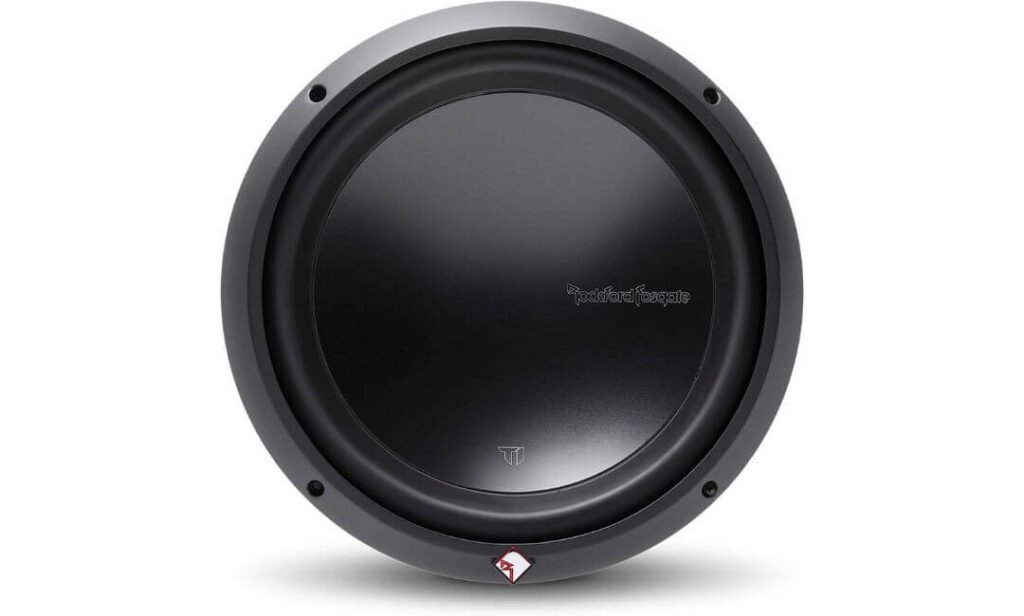

#2. Rockford Fosgate T1D412 Power T1 12-Inch Subwoofer

The interesting thing about this woofer isn’t simply that it is rated at 800W RMS. The real story is the way Rockford Fosgate has approached the cone and motor assembly. Its patented VAST technology increases the effective cone area by up to 25%, which is a clever way of getting more radiating surface from a conventional 12-inch frame. In a real vehicle, that can matter when you want the authority of a larger woofer without physically stepping up to one.

The construction is equally serious. A vented cast-aluminum basket, dual spiders, rubber surround and reinforced cone assembly give the moving parts plenty of support when the woofer is being driven hard. This is not the sort of subwoofer I would choose merely because it looks impressive in a product photo; the mechanical design makes much more sense once you consider what happens when 800 watts is being pushed through the voice coils repeatedly.

I also like the attention to installation. The dual 4-ohm voice coils can be configured for a 2-ohm or 8-ohm final load, while the SWIFT terminals make the wiring arrangement easier to manage. There is one catch: at roughly 7 inches of mounting depth, you still need to measure the enclosure properly. The included grille and trim ring are a nice bonus if you’re after a clean finished installation rather than a bare woofer sitting behind a custom panel.

(The important part here is not the headline wattage; it is how the motor, suspension, cone area and impedance options work together.)

What We Like About the Build

• VAST technology gives the 12-inch driver more effective cone area without requiring a physically larger woofer.
• 800W RMS handling puts it comfortably into serious-system territory for a properly matched mono amplifier.
• Dual 4-ohm voice coils provide useful 2-ohm and 8-ohm wiring configurations.
• Vented cast-aluminum basket and dual spiders are exactly the sort of hardware you want when the woofer will see sustained excursion.
• Grille and integral trim ring included make the finished installation easier to keep looking intentional.

The One Thing to Check Before Buying

The main thing I would check is available mounting depth. At around 7 inches, this is not a shallow 12-inch driver, so measure from the mounting surface to the nearest obstruction inside the enclosure or vehicle before ordering. Leave sensible clearance around the motor rather than designing the box so tightly that the cooling provisions become compromised.

Where Its Strength Really Shows

The T1D412 makes the most sense in a system where impact and serious output are the priority, but you still want a properly engineered woofer rather than a driver built around exaggerated peak-power advertising. The larger effective cone area from VAST is particularly interesting here because it gives the woofer a way to move plenty of air while remaining a 12-inch design.

It is also a good example of why amplifier matching matters. With the coils configured to a 2-ohm final load, a suitable mono amplifier can make better use of the woofer’s power capability; alternatively, an 8-ohm configuration can be useful when the amplifier and system design call for it. The right choice depends on the amplifier’s actual impedance ratings, not simply its advertised maximum wattage.

The Insider Pro-Tip

If you’re putting this into a trunk or SUV enclosure, don’t build the box around the outside dimensions of the woofer alone. The basket, motor structure and rear clearance all need to be accounted for, especially with a driver this deep. I would rather give up a little enclosure space than trap the back of the woofer against a panel and compromise its cooling.

And if you already own a mono amplifier, check its RMS output at 2 ohms before buying anything else. That’s the number that tells you whether this woofer is actually a sensible match. A beautifully built 800W RMS subwoofer paired with an amplifier that cannot comfortably drive its final load is still a poorly matched system.

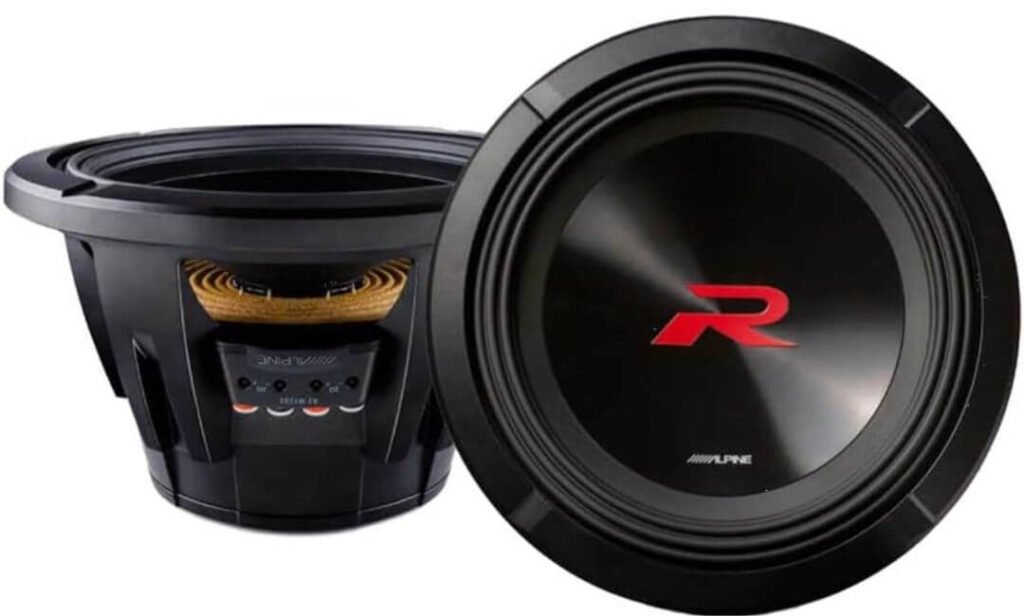

#3. Alpine R-Series R2-W12D4 12-Inch Subwoofer

Some 12-inch subwoofers are built around the idea of making the car as loud as possible. This one is more interesting if you want the bass to stay recognisable as music. The 750W RMS rating gives it plenty of room to work in a serious system, but the combination of a Kevlar-reinforced pulp cone, large motor structure and Alpine’s H.A.M.R. surround is what makes this driver worth considering when bass quality matters as much as sheer output.

The 24Hz lower frequency specification is another reason it stands apart in this group. You won’t automatically hear 24Hz just because a specification sheet says 24Hz—the enclosure, amplifier, vehicle cabin and recording all play a role—but it tells you that this driver is designed to reach well into the low end. The 20mm X-Max also gives the cone substantial travel, which is useful when you want the woofer to move serious amounts of air without immediately losing composure.

The dual 4-ohm coils keep the installation flexible. Wired in parallel, the driver presents a 2-ohm final load, while series wiring produces 8 ohms. That gives you options when matching it to a mono amplifier, but don’t choose the wiring based on the subwoofer alone. The amplifier must be comfortable with the final impedance, and the enclosure should be designed around the actual driver rather than treating every 12-inch box as interchangeable.

(This is the one I would look at closely if your definition of “good bass” includes hearing the texture of the bass line rather than simply feeling the trunk shake.)

What We Like About the Build

• 24Hz low-end capability makes it particularly attractive for tracks with genuinely deep bass content.
• 750W RMS handling gives the driver enough headroom for a serious aftermarket system.
• Kevlar-reinforced pulp cone balances rigidity with the natural damping characteristics of pulp.
• H.A.M.R. Santoprene surround and 20mm X-Max give it substantial excursion capability.
• Dual 4-ohm coils make amplifier matching more flexible when the final load is planned correctly.

The One Thing to Check Before Buying

The main thing I would not overlook is sensitivity. At 84.5 dB, this is not a particularly high-sensitivity woofer, so it benefits from an amplifier that can deliver clean power rather than trying to make up for limited output with an undersized amp. If you want this driver to show what it can really do, plan the amplifier and enclosure together.

Where Its Strength Really Shows

The R-Series makes the most sense in a system where controlled, musical low-end is more important than chasing a specification-sheet SPL number. A properly designed sealed enclosure can make it especially appealing for someone who wants bass that starts and stops cleanly instead of lingering around the cabin after the note has finished.

That does not mean it is a quiet or delicate woofer. The double-stacked motor, 65mm voice coil and substantial excursion capability give it plenty of hardware for serious output. The difference is in how I would approach the installation: rather than simply giving it the biggest amplifier and loudest ported box possible, I would build the system around the kind of bass you actually listen to.

The Insider Pro-Tip

If you’re installing this in a sedan, crossover, pickup or SUV and you listen to a mixture of hip-hop, electronic music, rock and tracks with acoustic bass, don’t automatically assume that the largest possible vented enclosure will give you the best result. A properly designed sealed enclosure can be the more satisfying choice when you care about definition and transient control.

And pay attention to the 2-ohm final load if you wire the dual 4-ohm coils in parallel. That’s usually the configuration that makes the most sense with a suitable mono amplifier, but only if the amp is genuinely rated for the load. The expensive mistake here isn’t choosing the wrong subwoofer—it’s buying a capable woofer and then pairing it with an amplifier or enclosure that prevents it from performing the way it was designed to.

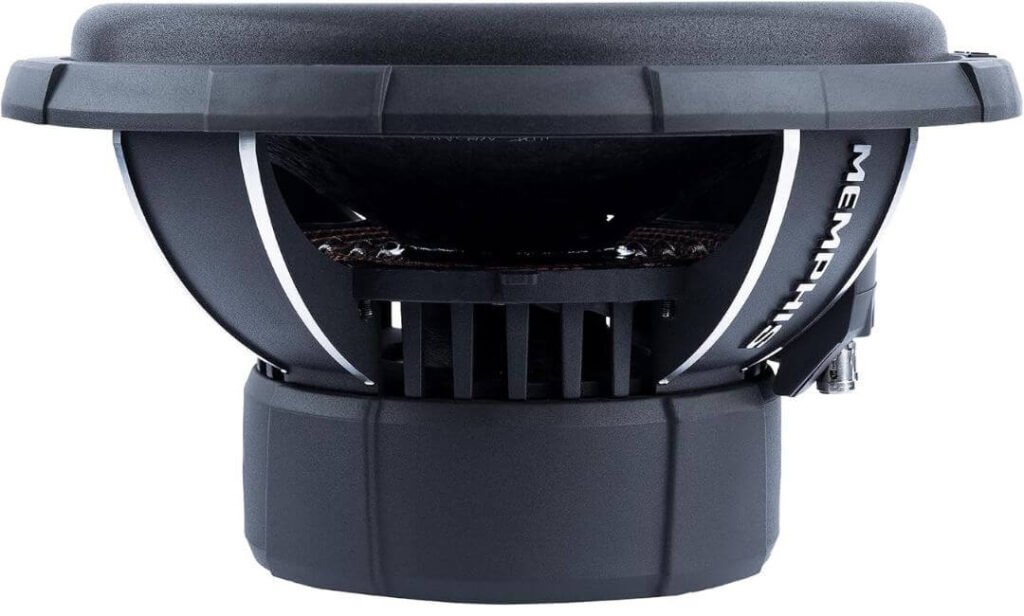

#4. Memphis MJP1222 MOJO Pro 12-Inch Subwoofer

This is the point in the list where the priority shifts noticeably toward output and thermal control. The MOJO Pro was designed with high-SPL use in mind, and that shows in the engineering rather than just the marketing language. Its 750W RMS rating is useful, but the more interesting part is the DVVC direct voice-coil cooling, which gives heat generated around the voice coil a dedicated path out of the motor structure as the cone moves.

That matters when you’re repeatedly asking a subwoofer to work hard. Add the cross-drilled front plate, dual stacked magnets and die-cast aluminum basket, and you have a driver designed to tolerate the kind of sustained mechanical and thermal stress that comes with high-output systems. This isn’t necessarily the woofer I’d put first for someone chasing the most delicate bass reproduction; it makes considerably more sense for someone who wants the bass to have physical presence.

The dual 2-ohm configuration is another major distinction. A single driver can be wired to a 1-ohm or 4-ohm final load, giving you useful options when selecting a mono amplifier. That flexibility comes with a warning, though: a 1-ohm configuration demands an amplifier that is genuinely stable at 1 ohm and an electrical system capable of supporting the load. The impedance choice should be made before the amplifier is purchased, not after everything is installed.

(This is a purpose-built high-output woofer, and treating it like an ordinary replacement subwoofer would miss the point.)

What We Like About the Build

• DVVC direct voice-coil cooling is the standout feature for prolonged high-power use.
• Dual 2-ohm coils allow a 1-ohm or 4-ohm final load with one driver.
• Aluminum shorting ring helps control inductance and can improve the woofer’s response as the voice coil moves.
• Cross-drilled front plate and dual stacked magnets reinforce the motor’s cooling and magnetic structure.
• 6.23-inch mounting depth makes it easier to package than some of the deeper high-power 12-inch drivers in this category.

The One Thing to Check Before Buying

The biggest consideration is amplifier and electrical-system compatibility, particularly if you intend to wire the coils to 1 ohm. Don’t assume that every mono amplifier advertised as “1000 watts” is comfortable at that load. Check its actual RMS output at 1 ohm, its minimum impedance rating and make sure the vehicle’s charging and wiring system can support the demand.

Where Its Strength Really Shows

The MOJO Pro is most convincing when the system is built around high-output bass rather than background bass. A properly designed ported enclosure can take advantage of what this woofer is designed to do, especially if you’re listening to music with sustained low-frequency content and want the cabin to physically respond to it.

The thermal design is what makes the product particularly interesting to me. High-SPL systems aren’t difficult because a woofer can play loudly for ten seconds; the real test is what happens when you keep demanding that output. DVVC, front-plate venting and the shorting ring address different parts of that problem, which is a much more useful story than simply quoting the 1,500W peak figure.

The Insider Pro-Tip

If you choose the 1-ohm configuration, plan the entire electrical side around it. Use properly sized power and ground wiring, an appropriate fuse, and an amplifier that is genuinely designed to operate at 1 ohm. Don’t chase a bigger amplifier simply because the woofer can theoretically handle more power.

For a daily-driven truck, SUV or car, I would also resist the temptation to make the ported enclosure as aggressive as possible just to gain a little more peak output. A well-designed box with sensible tuning will usually give you a much more usable system than one built purely around the loudest number on a meter.

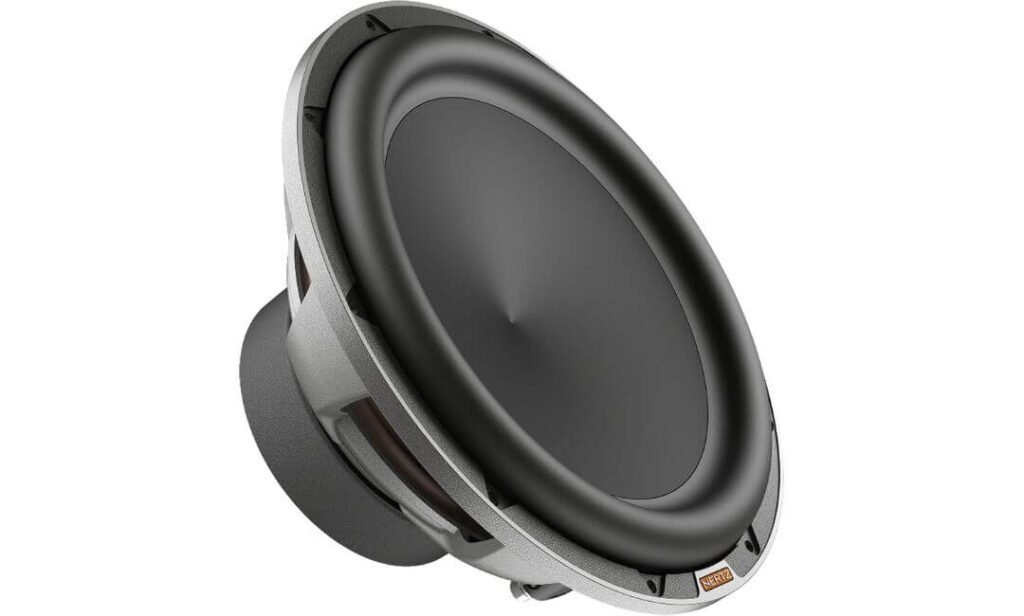

#5. HERTZ Mille Pro MP-300-D23 12-Inch Subwoofer

The interesting thing about this driver is that 600W RMS is not trying to compete with the biggest number in this list. Instead, Hertz has put considerable attention into how the woofer controls that power. The pressed-pulp cone with mineral powders is designed to remain rigid while keeping unwanted resonance under control, and the Boundary Free rubber surround increases the usable radiating area without making the cone itself physically larger.

That approach makes sense if your idea of a good 12-inch subwoofer is bass that has definition rather than simply volume. The ±16mm X-Max gives the cone plenty of travel, while the 65mm voice coil provides the thermal capacity expected from a serious aftermarket driver. With a stated low-frequency extension down to 25Hz, it also has the range to reproduce the bottom end of modern recordings when the enclosure and system are designed correctly.

The dual 2-ohm configuration gives you another useful installation choice. You can wire the coils for a 1-ohm or 4-ohm final load, depending on the amplifier you’re using. The terminal block accepting up to 8-gauge cable is also a practical touch for a higher-current installation. Just don’t interpret that as a reason to force the woofer into a 1-ohm setup; choose the final impedance according to the amplifier and the electrical system you actually have.

(This is a much more interesting choice for a sound-quality-focused build than its 600W rating might initially suggest.)

What We Like About the Build

• Mineral-loaded pressed-pulp cone focuses on rigidity and controlled movement rather than simply chasing maximum excursion.
• Boundary Free rubber surround makes better use of the available cone area within the 12-inch frame.
• ±16mm X-Max and 65mm voice coil give it meaningful excursion and thermal capability for a 600W RMS driver.
• CNC-machined aluminum basket provides a rigid mounting structure while incorporating ventilation around the motor.
• Dual 2-ohm voice coils give you practical 1-ohm and 4-ohm wiring possibilities.

The One Thing to Check Before Buying

The main thing to consider is what you actually want from the system. If your only objective is maximum SPL for the money, there are more output-focused options in this list. This driver makes more sense when controlled bass, musicality and clean reproduction are important enough to justify choosing a 600W RMS woofer instead of simply chasing a larger power rating.

Where Its Strength Really Shows

The Mille Pro is at its best when the subwoofer is expected to blend with the rest of the sound system rather than dominate it. The mineral-loaded cone, controlled suspension and large voice coil make it a particularly sensible option for someone who notices when bass becomes loose or one-note.

It can still produce serious low-end energy. The 25Hz extension and ±16mm excursion give it enough capability for modern electronic music, hip-hop and other bass-heavy material, but the design philosophy is clearly more about keeping that output composed. In a properly sized sealed enclosure, that can be especially appealing for a daily-driven car where you want to enjoy the system at both moderate and high volume.

The Insider Pro-Tip

If you’re choosing between this and a higher-rated woofer, don’t automatically assume the higher RMS number wins. 600W of well-controlled bass can be far more satisfying than 1,000W of poorly matched output. The enclosure, amplifier gain and crossover settings will have a huge influence on what you actually hear.

For a sedan, pickup or SUV, I would also spend time getting the subwoofer-to-front-speaker crossover transition right. A well-integrated 12-inch woofer should make the front stage feel fuller; you shouldn’t constantly hear a separate box in the back of the vehicle announcing where the bass is coming from. That is where a driver like this can make more sense than a purely SPL-oriented alternative.

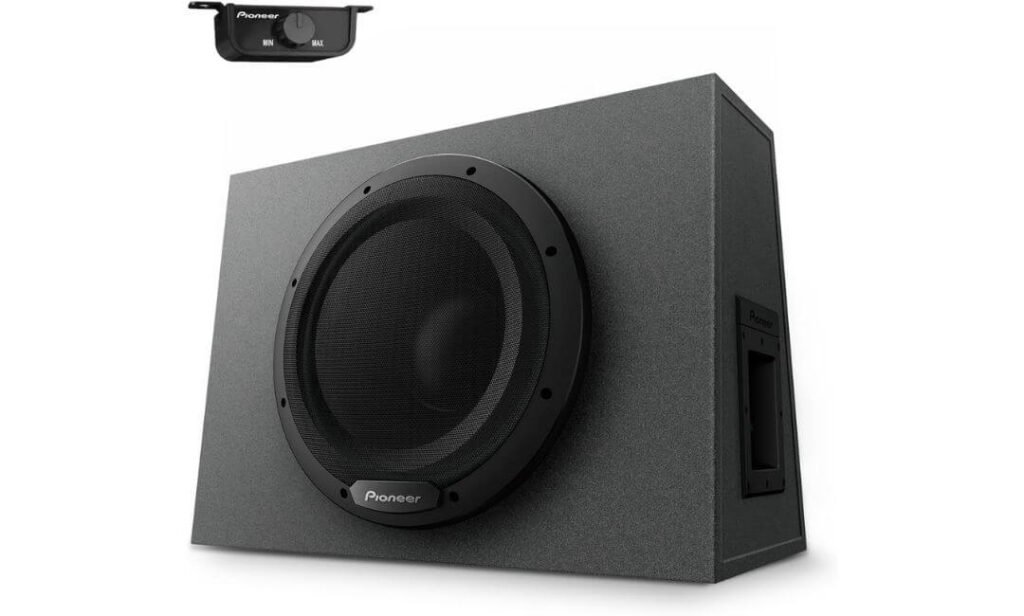

#6. PIONEER TS-WX1210A Powered 12-Inch Subwoofer

This is the easiest product in the group to understand because the subwoofer, enclosure and amplifier are already matched for you. Instead of buying a passive 12-inch driver and then spending more time choosing an amplifier, box and wiring configuration, this setup gives you a 300W Class D amplifier inside the enclosure. For someone upgrading a factory system who wants noticeably more low end without turning the project into a full custom build, that simplicity has real value.

The amplifier is not just there to make the specification sheet look impressive. Its Class D design is efficient and produces relatively little heat, while the enclosure is shaped to improve rigidity and reduce unwanted internal standing waves. You also get the controls that actually matter after installation: low-pass filtering, phase adjustment and variable bass boost from 0 to +12dB between 40Hz and 100Hz. Those adjustments can be useful because the same subwoofer can behave very differently in a sedan, pickup or SUV.

Another major advantage is connectivity. RCA and high-level inputs make it suitable for both aftermarket and many factory head-unit installations, so you don’t necessarily need to replace the stereo just to add bass. You still need proper power and ground wiring, and the enclosure is not small, so measure the intended location before buying. This is an active subwoofer designed to simplify the system—not a tiny under-seat enclosure that disappears completely.

(The real attraction here is not the 1,300W headline; it’s getting a complete powered 12-inch system without having to build the entire signal chain yourself.)

What We Like About the Setup

• Built-in 300W Class D amplifier removes the need to buy and mount a separate mono amp.
• High-level and RCA inputs make integration with factory and aftermarket stereos considerably easier.
• Phase, LPF and adjustable bass boost give you useful control over how the sub blends with the rest of the system.
• Sealed trapezoidal enclosure is designed around rigidity and reduced internal resonance rather than simply providing a box for the woofer.
• 20Hz–125Hz frequency range gives the system plenty of coverage for the low-frequency portion of modern music.

The One Thing to Check Before Buying

The biggest consideration is physical size. At roughly 20.75 inches wide, 15 inches high and 11 inches deep, this is much more substantial than a compact powered sub. Measure the trunk, rear-seat area or intended mounting position before ordering; the fact that it is an all-in-one system does not make the enclosure itself small.

Where Its Strength Really Shows

This is the choice for someone who wants a meaningful bass upgrade without assembling a separate subwoofer system. If your factory stereo sounds fine but lacks the low-end authority you want, there is little reason to replace the entire head unit just to add a sub. The high-level inputs give you a practical route into the factory signal, while the integrated amplifier keeps the installation considerably cleaner.

It also makes sense for a daily-driven sedan, SUV or pickup where convenience matters. You are giving up some of the amplifier and enclosure flexibility offered by the standalone KICKER, Rockford Fosgate, Alpine, Memphis and Hertz drivers, but in return you get a system where the major components have already been put together. That’s a worthwhile trade if simplicity is part of the buying decision.

The Insider Pro-Tip

Don’t turn the bass boost all the way up simply because the control allows it. Start with the boost near flat, set the low-pass filter so the sub blends naturally with your main speakers, and then use the phase control to find the position that gives you the strongest, most even bass from the driver’s seat.

And before running power through the vehicle, remember that an active 12-inch system still needs a properly fused power connection and a solid ground. “Powered subwoofer” means the amplifier is built into the box; it does not mean the installation is completely plug-and-play. A clean electrical connection will do far more for reliable performance than chasing the 1,300W maximum figure printed on the product listing.

Best 12-Inch Car Subwoofers in 2026 (Top RMS, DVC & Bass Options Compared)

12-Inch Subwoofer Buying Guide for Cars: How to Choose the Right Bass Setup

A 12-inch subwoofer is often the point where a car audio system stops sounding like it has simply been upgraded and starts feeling like a properly built system. But the diameter alone does not tell you how a subwoofer will perform. Two 12-inch drivers can have very different power requirements, enclosure needs, impedance options, bass character, and installation demands.

The important part is matching the subwoofer, amplifier, enclosure, electrical system, and available space as one system. A high-RMS woofer in the wrong box can sound worse than a lower-rated driver that has been installed correctly. Likewise, choosing a dual-voice-coil model without understanding final impedance can leave you with an amplifier load you did not intend to run.

Before buying, look beyond the wattage printed on the product page and work through the points below.

What a 12-Inch Subwoofer Really Means for Bass Depth and SPL

The 12-inch measurement refers to the nominal driver size, not a guarantee of how low, loud, or clean the subwoofer will play.

A larger cone area can move a useful amount of air, but bass depth and sound pressure level depend on much more than cone diameter. Motor strength, excursion, suspension design, voice-coil size, enclosure volume, port tuning, amplifier power, and the vehicle’s cabin all influence the final result.

For a car, there are two different goals that are often confused:

• Bass depth is about how convincingly the system reproduces lower frequencies. A driver designed to reach into the 20–30Hz region can produce a much more substantial low-end foundation when the enclosure and amplifier allow it to work properly.
• SPL, or sound pressure level, is about how much acoustic output the system can produce. This depends heavily on available power, cone movement, efficiency, enclosure design, and how well the driver handles that power.
• Bass quality is different again. A system can be extremely loud while sounding loose or one-note. A better-built setup will let you hear changes in bass notes instead of turning every low-frequency track into the same heavy thump.

This is why a 750W RMS subwoofer should not automatically be considered better than a 600W RMS model. The RMS figure tells you how much continuous power the driver is designed to handle under specified conditions; it does not tell you whether it will sound better in your particular vehicle.

The same applies to peak or maximum wattage. Peak numbers can be useful as a general indication of the driver’s short-term handling capability, but they should never be the main number used to select an amplifier.

For a serious car installation, think about the chain this way:

Music signal → amplifier → electrical power → voice coil → cone movement → enclosure → cabin

Every part affects what you actually hear.

The Key Specifications That Actually Matter When Comparing 12-Inch Subwoofers

When comparing several models, I would put the specifications into three groups: the numbers that determine system matching, the numbers that influence performance, and the numbers that mainly describe the product.

Specification	Why It Matters	What to Look For
RMS power	Determines the amplifier power range the driver is designed around	Compare with the amplifier’s RMS output at the intended impedance
Peak power	Indicates short-term maximum handling, but is less useful for system matching	Treat as secondary information
Impedance	Determines the electrical load presented to the amplifier	Confirm 1Ω, 2Ω, 4Ω or 8Ω final load before purchase
Voice-coil configuration	Determines which final impedances are possible	DVC gives more wiring flexibility, but only if wired correctly
Sensitivity	Gives an indication of how efficiently the driver converts input power into output	Useful when comparing otherwise similar drivers
X-Max	Indicates how far the cone can travel while maintaining controlled operation	More excursion can help with low-frequency output, but it is not a standalone quality score
Frequency response	Shows the manufacturer’s stated operating range	Look at the lower extension, but do not judge bass solely by the lowest number
Mounting depth	Determines whether the driver physically fits your enclosure	Measure the actual enclosure before ordering
Cutout diameter	Determines whether the driver fits the baffle opening	Check against the enclosure’s existing cutout
Recommended enclosure volume	Helps determine whether sealed or ported installation is practical	Use the manufacturer’s recommended range rather than guessing
Voice-coil size	Influences thermal handling and motor design	A useful supporting specification, not a standalone buying metric
Cooling design	Helps manage heat around the voice coil during sustained use	Important for higher-power systems and long listening sessions

RMS power should come before peak wattage

If you only remember one specification from the buying guide, make it RMS power.

For example, if your amplifier produces 700W RMS at the final impedance you intend to use, a subwoofer rated around 600–750W RMS may make far more sense than choosing something because its box says 2,000W peak.

That does not mean amplifier and subwoofer RMS ratings have to be identical. Real systems have some flexibility, and gain setting, enclosure loading, music material, and installation quality all affect actual operation. What matters is having a sensible power relationship and avoiding the assumption that a bigger peak number automatically means more usable bass.

Choosing Between Sealed, Ported and Bandpass Enclosures

The enclosure is not simply a container for the subwoofer. It becomes part of the acoustic system.

This is one of the biggest areas where buying guides often oversimplify things by saying that one enclosure type is universally better. It is not.

Sealed enclosure

A sealed enclosure is generally the more straightforward option when you want controlled, predictable bass and a relatively compact installation.

Because there is no tuned port, the enclosure design is less complicated. A properly sized sealed box can also integrate naturally with the rest of a car’s sound system, particularly when the goal is musical bass rather than maximum output.

A sealed setup can make sense when:

• You listen to many different genres.
• You want bass that blends with the front speakers.
• Available trunk space is limited.
• You value control and transient response.
• You do not need the highest possible SPL from the system.

The trade-off is that a sealed box may require more amplifier power to achieve the same perceived output as a well-designed ported system around the port’s tuned region.

Ported enclosure

A ported enclosure uses a tuned opening to increase output around a specific frequency range.

When correctly designed, it can produce more output and stronger low-frequency impact for the available amplifier power, which is why ported designs are common in systems where bass output is a major priority.

However, the port has to be designed correctly. Internal volume, port area, port length, tuning frequency, driver characteristics, and available excursion all matter.

A ported enclosure is worth considering when:

• Maximum output is important.
• You want stronger low-frequency impact.
• The vehicle has enough room for a larger enclosure.
• You are willing to build or buy a box specifically matched to the driver.
• The amplifier and electrical system can support the desired output.

Do not simply put a high-powered 12-inch driver into the biggest ported box you can fit. More box volume does not automatically mean deeper or better bass.

Bandpass enclosure

A bandpass enclosure is more specialized. The driver is mounted inside the enclosure, with the acoustic output passing through a ported chamber.

A well-designed bandpass system can produce substantial output within its intended frequency range, but the design is less forgiving than a straightforward sealed or ported enclosure. It is also easier to end up with a system that sounds impressive around a narrow range while losing some natural response outside it.

For most daily-driven cars, I would not choose bandpass simply because it can produce big numbers. It makes more sense when the enclosure has been specifically designed around the driver’s parameters and the desired frequency range.

Matching a 12-Inch Car Subwoofer With an Amplifier

This is where many otherwise good purchases go wrong.

The amplifier should be selected according to the subwoofer’s RMS requirement and final impedance, not simply according to its advertised maximum wattage.

Suppose a dual 4-ohm subwoofer is wired in parallel. The final load becomes 2 ohms. The amplifier must therefore be capable of delivering an appropriate amount of clean power at 2 ohms.

Wire the same dual 4-ohm coils in series and the final load becomes 8 ohms. The same amplifier will behave very differently at that impedance.

That is why the phrase “12 inch subwoofer with amp” does not automatically mean you should buy any amplifier advertised with a similar wattage figure.

Before choosing the amplifier, confirm:

1. The subwoofer’s RMS power rating.
2. Whether it uses a single or dual voice coil.
3. The impedance of each voice coil.
4. The final impedance after wiring.
5. The amplifier’s RMS output at that exact impedance.
6. Whether the amplifier is stable at that load.
7. Whether the vehicle’s electrical system can support the amplifier.

For a single subwoofer, a mono Class D amplifier is often the cleanest solution, particularly when the system is designed around substantial low-frequency output. A multi-channel amplifier can also be appropriate when the entire audio system is being powered from one amplifier platform.

How to think about amplifier power in the real world

Do not chase an amplifier because its packaging claims an enormous maximum number.

A clean amplifier delivering an appropriate RMS output is much more useful than an oversized amplifier that is poorly matched, incorrectly wired, or forced into an impedance it was not designed to handle.

The gain control is also not a volume control. It should be used to match the amplifier’s input sensitivity to the signal coming from the head unit or factory audio system. Turning gain all the way up to make the subwoofer louder can introduce clipping rather than giving you cleaner bass.

Space, Mounting Depth and Enclosure Size Matter More Than Most Buyers Expect

A 12-inch driver needs more than a 12-inch hole.

Before ordering, measure the actual installation area, including the depth available behind the mounting surface. This becomes particularly important with heavy-duty drivers that use large magnets, deeper baskets, and substantial cooling structures.

For an enclosure, check:

• External width, height and depth.
• Internal air volume.
• Subwoofer mounting depth.
• Baffle thickness.
• Cutout diameter.
• Magnet clearance.
• Terminal clearance.
• Port clearance, if using a ported design.
• Trunk or cargo-area clearance.
• Whether the enclosure will interfere with seats, panels or access to the spare tire.

The mounting-depth issue is easy to overlook because two subwoofers can have exactly the same nominal 12-inch diameter while requiring noticeably different space behind the baffle.

That matters with the models in this guide. A driver with a deep motor structure may technically fit the front opening but still hit the rear wall of a shallow enclosure.

Do Not Confuse External Box Dimensions With Internal Enclosure Volume

Manufacturers normally specify enclosure volume in cubic feet because the internal air space is what the driver actually works against.

An enclosure that measures a certain size externally does not necessarily provide the same internal volume after accounting for:

• MDF or plywood thickness,
• subwoofer displacement,
• port displacement,
• bracing,
• terminal cups,
• internal partitions.

For a ported box, the situation becomes even more important because the port itself occupies volume and its dimensions determine tuning.

If you are buying a pre-built enclosure, check that its stated air volume is appropriate for the specific driver. If you are having one built, give the builder the exact subwoofer model and enclosure target rather than simply saying, “Make me a box for a 12.”

Voice Coils and Impedance: The Wiring Decision You Should Make Before Buying

Dual voice coil, often written as DVC, does not mean a subwoofer has two separate speakers. It has one driver with two electrically separate voice coils.

The advantage is flexibility in how the coils are connected.

For a typical dual 4-ohm driver:

Voice-Coil Setup	Final Impedance
Parallel	2 ohms
Series	8 ohms

For a typical dual 2-ohm driver:

Voice-Coil Setup	Final Impedance
Parallel	1 ohm
Series	4 ohms

This difference can completely change which amplifier is appropriate.

For example, the 4-ohm DVC configuration used by several high-power models in this guide gives you the choice of a 2-ohm or 8-ohm final load. A dual 2-ohm design can instead provide a 1-ohm or 4-ohm final load.

That is why I would decide on the amplifier and intended final impedance before ordering the subwoofer, rather than buying the driver first and figuring out the wiring afterward.

A Note About 1-Ohm Systems

A 1-ohm configuration can be an excellent choice for a properly designed high-output system, but it puts greater demands on the amplifier and vehicle’s electrical system.

At lower impedance, an amplifier can potentially deliver substantially more current. That means the installation needs appropriate:

• Power cable,
• Ground cable,
• Fuse protection,
• Battery capacity,
• Alternator capability,
• Amplifier cooling,
• Electrical connections.

A 1-ohm setup is not automatically better than 2 or 4 ohms. It is simply another way of configuring the system, and the amplifier must be designed to operate reliably at that load.

Electrical System Requirements for a High-Power 12-Inch Setup

The subwoofer does not create power; the vehicle’s electrical system has to supply the amplifier that drives it.

This becomes increasingly important as amplifier power increases.

A modest powered enclosure may be relatively easy for a healthy factory electrical system to support. A high-output amplifier feeding a 750W or 800W RMS driver is a different situation, particularly when the system is played loudly for extended periods.

Before installation, consider:

• Battery condition and capacity.
• Alternator output.
• Correct fuse size.
• Proper power and ground cable sizing.
• Ground connection quality.
• Voltage stability under load.
• Amplifier efficiency.
• Whether additional electrical upgrades are actually necessary.

Do not automatically buy an oversized alternator or multiple batteries just because an amplifier has a large wattage number. The right electrical setup depends on the amplifier’s real current demand, how hard you use the system, and the vehicle.

Cable and Connectivity Basics for a Clean Installation

The signal side and power side of the installation are two different things.

The amplifier needs a properly routed power cable from the battery, an appropriately sized fuse near the battery, and a solid ground connection. The audio signal can come through RCA connections when the source unit supports them, or through high-level inputs when integrating with a factory system.

For factory stereos, high-level input capability can be particularly useful because it can reduce the need to replace the original head unit.

The important connections typically include:

• Battery power: supplies the amplifier.
• Ground: completes the amplifier’s high-current electrical circuit.
• Fuse: protects the power cable and vehicle from a short circuit.
• Remote turn-on: tells the amplifier when the system should switch on, where applicable.
• RCA or high-level signal: carries the audio signal into the amplifier.
• Speaker wire: connects the amplifier to the subwoofer.
• Voice-coil wiring: determines the final impedance of a DVC driver.

Keep power and signal routing sensible, secure the wiring properly, and avoid treating cable quality as a substitute for correct cable sizing and installation.

How to Choose the Right 12-Inch Subwoofer for Your Car

The right choice depends more on the complete system than on which product has the largest specification sheet.

For a daily-driven vehicle, I would narrow the decision like this:

• Want the best overall balance? Prioritize a well-built driver around the 600–800W RMS range, with a practical enclosure requirement and an amplifier that matches its final impedance.
• Want maximum output and physical impact? Look toward the higher-output designs, but make the enclosure and electrical system part of the purchase decision.
• Want controlled, musical bass? A properly designed sealed enclosure and a driver with good excursion and suspension control can be more satisfying than simply chasing SPL.
• Want easier installation? A powered enclosure removes the need to separately select a subwoofer, enclosure and amplifier, although you still need to plan the power and signal connections.
• Have limited trunk space? Check mounting depth and enclosure dimensions before looking at performance numbers.
• Already own an amplifier? Start with its RMS output and stable impedance range, then select the subwoofer around those limitations.
• Building the system from scratch? Choose the desired bass character first, then match the subwoofer, enclosure, amplifier and electrical system together.

The biggest mistake is buying the subwoofer first and treating everything else as an afterthought. A good 12-inch driver can perform exceptionally well, but the enclosure, amplifier, impedance and installation determine how much of that potential actually reaches the driver’s cone.

12-Inch Subwoofer Installation and Setup Tips for Clean, Reliable Bass

Installing a 12-inch subwoofer is not difficult because the driver itself is complicated. The difficult part is getting all the pieces to work together correctly. The enclosure has to suit the driver, the amplifier has to see the correct impedance, the wiring has to be secure, polarity has to be correct, and the gain and crossover controls have to be set without asking the equipment to do something it was never designed to do.

That last part is where many installations fall short. A subwoofer can be technically installed and still sound weak, muddy, distorted, or strangely out of phase.

A proper installation should be treated as a system setup, not simply a process of connecting a large speaker to an amplifier.

Step 1: Confirm the Subwoofer, Enclosure and Amplifier Match Before Wiring Anything

Before mounting the driver, verify the three specifications that can cause the biggest problems later:

• The subwoofer’s RMS power rating.
• The voice-coil configuration and impedance.
• The enclosure type and recommended internal volume.

Then check the amplifier’s specifications at the exact final impedance you intend to use.

For example, a dual 4-ohm voice-coil subwoofer can normally be wired for a 2-ohm or 8-ohm final load. A dual 2-ohm design can normally be wired for a 1-ohm or 4-ohm final load.

Do not assume that an amplifier advertised as “1,000 watts” will produce 1,000 watts at every impedance. Amplifier output normally changes with load, so the specification you need is its RMS output at your intended final impedance.

Before installation, also physically test the enclosure location. A 12-inch driver needs enough room not only for the front cutout, but also for the basket, magnet, terminals, wiring and rear clearance.

Step 2: Inspect the Enclosure Before Installing the Driver

The enclosure should be structurally sound before the subwoofer goes into it.

Check for:

• Loose panels or visible gaps.
• Weak or damaged mounting surfaces.
• Air leaks around joints.
• Incorrect or damaged terminal connections.
• Insufficient internal clearance.
• Port obstructions in a ported enclosure.
• Loose internal bracing.
• Screws or hardware that could contact the back of the driver.

For a sealed enclosure, the cabinet should be properly airtight. For a ported enclosure, the port must remain unobstructed and its dimensions should correspond with the intended tuning.

Do not fill a ported enclosure with random acoustic material or partially block the port because you think it will make the bass tighter. That changes how the enclosure behaves.

Step 3: Mount the 12-Inch Driver Squarely and Securely

Place the subwoofer into the cutout without forcing the basket into position.

The mounting surface should support the entire frame evenly. If the enclosure uses mounting screws, tighten them progressively in a crisscross pattern rather than completely tightening one screw before moving to the next.

This helps distribute pressure around the frame.

Do not overtighten the hardware. Excessive force can damage the basket, enclosure material, or mounting threads. The goal is a firm mechanical connection, not crushing the gasket.

Before the final tightening, check the rear clearance again. The magnet should not contact the enclosure wall, internal bracing, or any wiring.

Step 4: Wire a Dual Voice Coil Subwoofer Correctly

This is one of the most important parts of the installation.

A dual voice coil subwoofer has two electrically separate coils. Both coils need to be connected correctly; you cannot treat one coil as optional.

For a typical dual 4-ohm driver:

Parallel wiring: 2-ohm final load

AMP POSITIVE (+)
       |
       +------ Voice Coil 1 (+)
       |
       +------ Voice Coil 2 (+)

AMP NEGATIVE (-)
       |
       +------ Voice Coil 1 (-)
       |
       +------ Voice Coil 2 (-)

Both positive terminals are connected together, and both negative terminals are connected together.

This reduces the final impedance from 4 ohms per coil to 2 ohms.

For the same dual 4-ohm driver:

Series wiring: 8-ohm final load

AMP POSITIVE (+)
       |
       +------ Voice Coil 1 (+)

Voice Coil 1 (-)
       |
       +------ Voice Coil 2 (+)

Voice Coil 2 (-)
       |
       +------ AMP NEGATIVE (-)

The negative terminal of the first coil connects to the positive terminal of the second coil, leaving the remaining positive and negative terminals connected to the amplifier.

The final impedance becomes 8 ohms.

For a typical dual 2-ohm driver, the same wiring principles produce different results:

Voice-Coil Configuration	Dual 2-Ohm Driver	Dual 4-Ohm Driver
Parallel	1 ohm	2 ohms
Series	4 ohms	8 ohms

The important point is that the voice-coil impedance and final wired impedance are not the same thing.

Step 5: Use a Mono Amplifier Correctly With a Single Subwoofer

For one 12-inch subwoofer, a mono amplifier is often the simplest arrangement because it is designed specifically for low-frequency duty and can be selected around the subwoofer’s final impedance.

If the driver is wired to 2 ohms, the amplifier needs to be stable at 2 ohms and should provide an appropriate RMS output at that load.

Do not wire a dual voice-coil driver to 2 ohms and then check the amplifier’s 4-ohm specification. Those are different operating conditions.

A good installation sequence is:

1. Decide the final subwoofer impedance.
2. Confirm the amplifier is stable at that impedance.
3. Check the amplifier’s RMS output at that load.
4. Connect both voice coils correctly.
5. Verify the wiring with a multimeter before applying significant power.
6. Start the amplifier with conservative settings.

Step 6: Be Careful When Using a Stereo Amplifier

A conventional stereo amplifier has separate left and right channels, and a single DVC subwoofer should not automatically be treated as if each voice coil is simply another speaker channel.

Some amplifiers support specific bridging configurations, while others do not. The manufacturer’s wiring instructions must be followed.

If an amplifier is bridgeable, verify:

• The minimum bridged impedance.
• Whether the amplifier permits a subwoofer on the bridged output.
• The correct terminals to use.
• The amplifier’s RMS output when bridged.
• Whether the voice-coil configuration creates a safe load.

Never assume that because two channels exist, one voice coil can be connected to each channel. The two channels may not be electrically suitable for that arrangement, and mismatching the setup can cause poor performance or amplifier damage.

For a single high-power 12-inch driver, a properly matched mono amplifier is usually the cleaner route.

Step 7: Connect Power, Ground and Signal Wiring Properly

The amplifier’s power wiring deserves the same attention as the speaker wiring.

The basic installation normally includes:

• Battery-positive power cable.
• Fuse positioned appropriately near the battery.
• Properly sized ground cable.
• Secure chassis grounding point.
• Remote turn-on connection, where required.
• RCA or high-level audio input.
• Speaker wiring from amplifier to subwoofer.

The power cable should be protected from sharp metal edges, excessive heat and moving components. Use appropriate grommets when passing wiring through metal panels.

The ground connection should be short, secure and attached to clean metal. Paint, rust, loose hardware and poor contact can create unnecessary resistance.

Do not select cable size purely because a package says it is “competition grade.” Correct conductor size, fuse protection and installation quality matter far more than marketing language.

Step 8: Check Polarity Before Turning the System Up

Polarity problems are surprisingly common.

If the positive and negative connections are reversed at one point in the system, the subwoofer can move out of phase with the rest of the speakers.

That can produce bass that sounds strangely weak from the driver’s seat even though the subwoofer itself is moving normally.

Before final testing:

• Confirm amplifier positive goes to the intended positive voice-coil connection.
• Confirm amplifier negative goes to the intended negative connection.
• Confirm both coils are wired consistently.
• Confirm the factory speakers have not been connected with reversed polarity.
• Check phase control on the amplifier or powered enclosure if available.

If everything appears electrically correct but the bass seems stronger outside the car than from the driver’s seat, phase and acoustic interaction with the front speakers deserve investigation.

Step 9: Match the Enclosure to the Type of Bass You Actually Want

A sealed and ported enclosure should not be chosen simply because one is marketed as “better.”

A sealed box generally gives you a more compact, controlled installation, while a correctly designed ported enclosure can provide greater output around its tuned region.

Use a sealed enclosure when:

• You want controlled, smooth bass.
• You have limited installation space.
• Musical integration matters more than maximum SPL.
• You prefer a simpler enclosure design.

Consider ported when:

• Higher output is a priority.
• You want stronger impact around the enclosure’s tuning range.
• You have room for a larger enclosure.
• You are willing to follow the recommended volume and port dimensions.

For a ported system, never change the port dimensions casually. Changing port length or area changes tuning, and an incorrect design can negatively affect response and driver control.

Step 10: Set the Low-Pass Filter Before Increasing Bass Output

The low-pass filter tells the amplifier where the subwoofer should gradually stop reproducing higher frequencies.

For many car systems, an initial setting somewhere around 70–90Hz is a sensible starting point, but there is no universal number that works for every vehicle.

The final setting depends on:

• Front speaker capability.
• Factory crossover behavior.
• Subwoofer enclosure.
• Cabin acoustics.
• Listening position.
• How naturally the subwoofer blends with the front stage.

If the subwoofer sounds like it is coming from the rear of the vehicle, the crossover may be set too high, or the phase and integration may need adjustment.

The objective is not to hear a separate “subwoofer.” The objective is to hear a fuller system.

Step 11: Do Not Treat Bass Boost as Free Power

Bass boost is one of the easiest controls to misuse.

If an amplifier offers a bass boost control, increasing it significantly can demand much more excursion and amplifier power around the boosted frequency.

That can increase the possibility of:

• Clipping.
• Excessive cone excursion.
• Voice-coil heating.
• Amplifier strain.
• Mechanical damage.

Start with bass boost flat or at its minimum position. Get the enclosure, crossover, gain and phase working correctly first.

If the system already produces the bass response you want without additional boost, there is no reason to add it simply because the control exists.

Amp Pairing Cheat Sheet for a 12-Inch Car Subwoofer

The following is a practical starting framework, not a replacement for the manufacturer’s specifications.

Subwoofer RMS Range	Sensible Amplifier Starting Point	What to Check
Around 300W RMS	Roughly 250–350W RMS	Final impedance, enclosure efficiency
Around 500–600W RMS	Roughly 400–600W RMS	Clean power and electrical capacity
Around 750–800W RMS	Roughly 600–800W RMS	Amplifier output at the actual final impedance
Around 1,000W RMS and above	Purpose-built high-output amplifier	Electrical system, wiring, enclosure and thermal demands

These ranges are intentionally practical rather than absolute.

An amplifier does not have to have exactly the same RMS rating as the subwoofer. What matters is that the system is configured so the amplifier can provide clean, controllable power without being pushed beyond its safe operating limits.

Recommended Starting Settings After Installation

Once the wiring has been checked, start conservatively.

A useful initial setup is:

Control	Starting Point	Adjustment Goal
Gain	Low, then increase gradually	Match the source signal without audible clipping
Low-pass filter	Around 70–90Hz	Blend with the main speakers
Bass boost	Off or minimum	Add only if genuinely needed
Phase	0° initially	Compare with 180° and choose the stronger, cleaner blend where applicable
Subwoofer level	Moderate	Increase until bass integrates naturally
Equalization	Flat initially	Tune only after the basic setup is correct

Do not make five adjustments at once.

Change one control, listen from the normal driving position, and then make the next adjustment. This makes it much easier to understand what actually improved or damaged the system.

Common 12-Inch Subwoofer Installation Mistakes to Avoid

Choosing the amplifier by peak wattage

Peak ratings are not a reliable basis for amplifier matching. Use RMS output at the intended impedance.

Ignoring final impedance

A DVC 4-ohm subwoofer is not simply a “4-ohm subwoofer” once the coils are wired. It can become a 2-ohm or 8-ohm load depending on the configuration.

Using the wrong enclosure volume

A box that is too large, too small, poorly sealed, or incorrectly tuned can change the driver’s behavior significantly.

Installing a deep subwoofer into a shallow box

The front opening may fit while the motor assembly hits the rear wall. Always measure mounting depth and rear clearance.

Wiring only one voice coil

Both voice coils need to be connected correctly when using a DVC driver. Leaving one unused is not a normal installation method.

Running a ported enclosure with an unsuitable tuning frequency

The enclosure and driver should be treated as a matched acoustic system. Randomly changing port dimensions can create problems with response and cone control.

Turning the gain and bass boost all the way up

More control position does not mean more clean bass. Excessive gain or boost can push the amplifier and driver into distortion or excessive excursion.

Forgetting the electrical system

A large amplifier can place meaningful demand on the vehicle’s charging system. Voltage drop, poor grounds and undersized wiring can hurt performance and reliability.

The Final Setup Check Before Calling the Installation Finished

After everything is installed, do not immediately turn the system to maximum volume.

Start at a moderate level and listen for:

• Distortion.
• Rattling from the enclosure.
• Port noise.
• Loose mounting hardware.
• Unusual mechanical sounds from the driver.
• Excessive amplifier heat.
• Voltage instability.
• Bass cancellation around the crossover region.

Then check the system from the driver’s seat, not only while standing beside the open trunk.

That is where the installation actually has to work.

If the bass is strong with the trunk open but becomes thin when the vehicle is closed, do not automatically assume the subwoofer needs more power. Cabin acoustics, phase, crossover integration and enclosure positioning may be the real issue.

A properly installed 12-inch subwoofer should not require you to constantly run the system at its limit to sound impressive. The best setup is the one that produces the bass you want while leaving the amplifier, driver and electrical system with enough headroom to operate reliably.

How to Maximize Bass With RMS Power and Proper Tuning

Getting more bass from a 12-inch subwoofer is not simply a matter of turning the amplifier up. The biggest gains usually come from using the available RMS power efficiently, matching the enclosure to the driver, and tuning the system around the way the vehicle actually sounds.

A subwoofer rated at 750W RMS does not need to be operated at 750W every second to perform well. RMS is a continuous power-handling reference, while the actual power delivered to the driver changes constantly with the music. What matters is having enough clean amplifier power available, keeping the electrical system stable, and avoiding the distortion and excessive excursion that occur when you try to force more output than the system can produce cleanly.

The same principle applies to tuning. A system that is slightly quieter on a meter can sound substantially better from the driver’s seat if its crossover, phase, enclosure and equalization are properly integrated.

Understanding High-RMS Bass: Why Continuous Power Matters

RMS power is one of the most useful specifications when building a subwoofer system because it gives you a realistic reference for continuous power handling.

Peak or maximum wattage describes a short-duration capability under specified conditions. It is not the number you should use to decide how much amplifier power to buy.

If a subwoofer is rated at 750W RMS, that means the driver is designed around handling a substantial amount of continuous power under its specified test conditions. It does not mean that feeding exactly 750W continuously is automatically the best way to use it.

Real music is dynamic.

A bass note may demand a large amount of power for a short moment, followed by a quieter section. A sustained bass-heavy track can create considerably more thermal stress than an occasional transient. The voice coil converts electrical energy into mechanical movement, and some of that electrical energy ultimately becomes heat.

That is why thermal management matters just as much as the headline RMS figure.

A high-RMS driver becomes useful when the rest of the system can support it:

• The amplifier provides clean power at the intended impedance.
• The enclosure gives the driver the correct acoustic loading.
• The electrical system can supply the amplifier without excessive voltage drop.
• The voice coil receives the correct signal.
• The driver is not being forced beyond its mechanical limits.
• The gain is set correctly rather than used as a substitute for amplifier power.

This is also why a 600W RMS driver can outperform a poorly matched 1,000W-rated system in everyday listening. More advertised power does not compensate for a bad enclosure, clipping, incorrect impedance, or poor integration.

RMS Power vs Amplifier Power: The Matching Rule That Actually Works

There is no requirement for the amplifier’s RMS rating and the subwoofer’s RMS rating to be mathematically identical.

Instead, look at the amplifier’s actual RMS output at the subwoofer’s final impedance.

For example, if a dual 4-ohm subwoofer is wired in parallel, the amplifier sees a 2-ohm load. If the amplifier produces around 700W RMS at 2 ohms, that can be a sensible match for a driver rated around 750W RMS.

The important part is that you do not compare the amplifier’s 4-ohm output with a subwoofer wired to 2 ohms.

Before making the match, check:

1. The RMS rating of the subwoofer.
2. The impedance of each voice coil.
3. The final impedance after wiring.
4. The amplifier’s RMS output at that impedance.
5. The amplifier’s minimum stable impedance.
6. The vehicle’s electrical capacity.
7. The enclosure’s recommended volume and design.

A clean amplifier with reasonable headroom is preferable to an amplifier that is constantly being pushed into clipping.

Why Clipping Is Not the Same as More Bass

One of the most damaging misunderstandings in car audio is that increasing gain until the subwoofer sounds louder is equivalent to increasing clean power.

It is not.

When an amplifier is driven beyond what it can reproduce cleanly, the waveform becomes distorted. That distortion can add unwanted energy to the signal and increase stress on the voice coil.

The result may initially sound louder, but the bass becomes less controlled and the system has less usable headroom.

Watch for signs such as:

• Harsh or gritty bass.
• Bass that loses definition as volume increases.
• The subwoofer sounding strained on sustained notes.
• Amplifier protection activating.
• Excessive heat.
• Mechanical noises from the driver.
• A noticeable increase in distortion before you reach the desired listening level.

If the system needs the gain nearly maxed out to produce adequate output, the answer may be an amplifier or signal-level problem rather than a new subwoofer.

Tuning for Punch vs. Depth

“More bass” is not one sound.

A system tuned for punch can make kick drums and bass hits feel immediate and physical. A system tuned for depth emphasizes lower frequencies and can make sustained bass lines feel larger and more atmospheric.

Neither approach is automatically better.

Your enclosure has a major influence here. A sealed design tends to offer a controlled response, while a ported enclosure can produce considerably more output around its tuning region when correctly designed.

The vehicle itself also changes the result. Cabin gain can reinforce lower frequencies, so a response that looks modest outside the car can become much stronger inside the cabin.

For that reason, tuning should happen from the driver’s seat, not solely from specifications or an open-trunk listening test.

Low-Pass Filter: Start With Integration, Not Maximum Range

The low-pass filter determines how much upper-frequency content is allowed to reach the subwoofer.

For many car systems, beginning somewhere around 70–90Hz is a reasonable starting point. It is not a universal rule.

If the crossover is set too high, the subwoofer may start reproducing frequencies that should be handled by the main speakers. The bass can then become easier to locate, making the system sound as though the low frequencies are coming from the rear of the vehicle.

If it is set too low, there can be an obvious gap between the subwoofer and the front speakers.

The right setting depends on:

• The front speaker’s low-frequency capability.
• Factory crossover behavior.
• Subwoofer enclosure design.
• Vehicle acoustics.
• Listening position.
• Slope of the amplifier’s crossover filter.

Make small adjustments rather than moving the control dramatically.

The goal is simple: the subwoofer should add weight without announcing where it is installed.

Phase: The Setting That Can Change Bass Without Adding Any Power

Phase adjustment is often overlooked because it does not change the amplifier’s wattage.

It can, however, change how the subwoofer and other speakers interact at overlapping frequencies.

If the subwoofer and front speakers are working against each other around the crossover region, some frequencies can partially cancel. You may hear less bass from the driver’s seat even though the subwoofer is moving normally.

If your system has a 0°/180° phase switch, try both positions at your normal listening position.

Listen for:

• Stronger bass around the crossover region.
• A smoother transition between front speakers and subwoofer.
• Less hollow or thin bass.
• Better impact without increasing the gain.

If an adjustable phase control is available, more precise adjustment can be useful, but do not assume that a higher phase setting is automatically better.

Equalization: Correct the System Before Trying to Boost It

Equalization should be used to correct the response, not simply to add more of everything.

If the vehicle has a large peak at a particular bass frequency, increasing that same frequency with an equalizer can make the problem worse. Cutting a problematic peak can sometimes produce a cleaner result while allowing the rest of the bass to sound stronger by comparison.

A sensible tuning sequence is:

1. Set the equalizer flat.
2. Set the low-pass filter.
3. Set phase.
4. Adjust gain.
5. Listen for obvious peaks or holes.
6. Make small equalization adjustments.
7. Recheck the system at different volume levels.

Avoid stacking aggressive bass boost, equalizer boost and amplifier gain. Those controls can interact, and the result can be much more demanding on the amplifier and voice coil than the individual settings suggest.

Bass Boost: Use It Only When the System Actually Needs It

Bass boost can be useful when applied carefully, but it should not be the first adjustment you make.

A boost centered around a particular frequency can dramatically increase the amount of energy the amplifier sends to that part of the spectrum.

That can cause:

• Increased cone excursion.
• Greater voice-coil heating.
• Earlier amplifier clipping.
• Reduced headroom.
• More mechanical stress.

Start with bass boost disabled.

Once the system is correctly crossed over, the gain is matched and the enclosure is behaving properly, you can determine whether a small amount of boost actually improves the sound.

If the subwoofer already produces the desired response without it, leave it alone.

How Enclosure Tuning Changes the Meaning of “More Bass”

A ported enclosure is especially sensitive to tuning.

The port’s dimensions establish a tuning frequency, and around that region the enclosure can significantly influence output. This can make a ported system sound considerably louder in part of the bass range without necessarily increasing amplifier power.

But there is a trade-off.

If the enclosure is tuned too high, the system can emphasize a narrower region of bass and sound less natural. If the design is poorly matched to the driver, low-frequency control can also suffer.

For a serious build, use the enclosure volume and tuning recommendations for the specific driver rather than copying the dimensions of another 12-inch subwoofer box.

A 12-inch driver is not automatically compatible with every 12-inch enclosure.

Real-World Bass Testing: What You Should Actually Measure

You do not need an expensive laboratory to determine whether your system is working correctly.

There are three useful categories of testing:

Decibels, SPL, and distortion.

Each tells you something different.

Measuring Decibels and SPL

A decibel measurement tells you how loud the system is at a particular location and frequency.

SPL, or sound pressure level, is particularly useful when your goal is maximum output.

For meaningful comparisons, keep the testing conditions consistent:

• Same vehicle.
• Same seat position.
• Same windows and doors.
• Same track or test tone.
• Same volume level.
• Same microphone position.
• Same enclosure configuration.

Changing the microphone location by a small amount can change the measured result because vehicles develop strong standing-wave and cabin-response effects at low frequencies.

Do not compare an SPL reading taken from one vehicle with a reading taken from another and assume the higher number means the subwoofer itself is inherently better.

Using a Decibel Meter or Measurement App

A basic SPL meter or a reasonably calibrated measurement application can help you identify trends.

For example, you can play controlled test tones at different frequencies and record the measured level.

A simple test might look like:

Test Frequency	What You Are Looking For
25Hz	Very-low-frequency capability and enclosure behavior
30Hz	Deep bass extension
35Hz	Low-frequency output
40Hz	Common strong-output region
50Hz	Punch and cabin interaction
60Hz	Upper-bass transition
70–80Hz	Crossover integration

The exact frequencies are not universal, and a measurement at one frequency should never be treated as a complete description of the system.

The useful information comes from the pattern across the range.

If one frequency is dramatically louder than everything around it, you may be hearing a cabin or enclosure peak rather than genuinely better overall bass.

Distortion Testing: Loud Is Not Always Better

SPL alone can be misleading.

A system can produce a high sound-pressure reading while also producing significant distortion.

For serious tuning, listen for changes as volume increases. If the bass suddenly becomes rough, compressed, buzzy, or less defined, you may be reaching the practical limit of the system even if the SPL number continues climbing.

A distortion measurement tool can provide more objective information if available, but even without one, the transition from clean bass to obviously strained bass is useful information.

The objective is not:

“How loud can I make this subwoofer before something gives up?”

The better question is:

“How much clean output can this system produce before distortion becomes obvious?”

That is the usable performance you should care about.

A Simple Real-World Tuning Test You Can Do From the Driver’s Seat

After the installation is complete, use several tracks that you know extremely well.

Choose recordings with:

• Short kick-drum hits.
• Sustained bass notes.
• Deep electronic bass.
• Acoustic bass.
• Vocals with strong mid-bass content.
• Different recording styles.

Start with conservative settings.

Then work through the system in this order:

1. Set the subwoofer level to a moderate position.
2. Set bass boost to zero.
3. Set the low-pass filter around 70–90Hz.
4. Compare phase settings.
5. Adjust gain gradually.
6. Listen for the point where bass stops getting cleaner and starts getting strained.
7. Make small equalizer adjustments only after the basic integration is right.
8. Recheck at both low and high listening levels.

A setup that sounds excellent at low volume but becomes boomy at normal driving volume still needs work.

How to Tell Whether You Need More Power or Better Tuning

This is where real-world diagnosis becomes useful.

If the subwoofer sounds clean but simply does not reach the output level you want, you may genuinely need more amplifier power or a more efficient enclosure.

If it sounds loud but muddy, adding power is unlikely to solve the problem.

If it sounds strong outside the vehicle but weak from the driver’s seat, investigate phase, crossover and cabin interaction.

If it sounds good at moderate volume but becomes distorted when pushed, investigate gain structure, amplifier headroom, electrical voltage and driver limits.

If one particular bass note overwhelms everything else, look at enclosure tuning and cabin response before buying another amplifier.

Use this basic diagnosis:

What You Hear	More Likely Cause	First Thing to Check
Clean but not loud enough	Limited power or efficiency	Amplifier output and enclosure
Loud but muddy	Poor integration or enclosure response	Low-pass filter and enclosure
Very weak from driver’s seat	Phase cancellation	Phase and crossover
One bass note dominates	Cabin or enclosure peak	Frequency response
Distortion at high volume	Clipping or driver limits	Gain, amplifier headroom, voltage
Bass disappears at certain frequencies	Cancellation or response dip	Phase, crossover and cabin acoustics
Amplifier gets excessively hot	High demand or poor airflow	Load, wiring and cooling

The Real Meaning of “Maximum Bass”

Maximum bass should not mean maximum volume at any cost.

For a daily-driven vehicle, the better target is maximum clean, usable bass.

That means getting the most performance possible from the amplifier without unnecessary clipping, using the enclosure to help the driver rather than fighting it, setting the crossover so the subwoofer blends into the main speakers, and using phase and equalization to correct the response instead of simply boosting everything.

A properly matched 12-inch system can sound significantly more powerful without changing the subwoofer at all.

Sometimes the biggest improvement is not another 500 watts.

It is better impedance matching, better enclosure design, better gain structure, and better tuning.

FAQs About 12-Inch Car Subwoofers

Final Thoughts: Build the System Around the Bass You Actually Want

A 12-inch subwoofer can completely change the character of a car’s audio system, but the driver itself is only one part of the equation. The best result comes when the subwoofer, enclosure, amplifier, impedance, electrical system and tuning are chosen as one system, rather than as separate upgrades.

That is why I would not make the final decision by comparing peak wattage numbers or choosing whichever model has the biggest specification sheet. A 750W RMS driver in a correctly designed enclosure can be far more satisfying than a higher-rated subwoofer that is being asked to work with the wrong amplifier, wrong impedance or unsuitable box.

There is also no single “best” 12-inch setup for every car.

If your priority is strong everyday bass, look for a driver with sensible RMS handling, a practical enclosure requirement and enough amplifier headroom. If you want maximum output, then enclosure design, electrical capacity and impedance become much more important. If you care about musical accuracy, controlled response and integration with the front speakers may matter more than another few hundred watts on the specification sheet. And if simplicity is the priority, a powered enclosure can make more sense than building the entire system from separate components.

The most useful thing you can do before buying is therefore surprisingly simple: decide what you want the bass to feel like, then build backward from that goal.

Check the final impedance before choosing the amplifier. Check the enclosure before assuming the subwoofer will fit. Check RMS power instead of getting distracted by peak numbers. Check the vehicle’s electrical capacity before adding a large amplifier. Then spend time tuning the crossover, phase and gain instead of trying to solve every problem with more volume.

And there is one final piece of real-world advice worth keeping in mind: you should not need to run a properly matched system at its limit to enjoy it.

The best 12-inch car subwoofer setup is not necessarily the one that produces the biggest number on an SPL meter. It is the one that gives you deep, clean and convincing bass from the driver’s seat, remains controlled when the volume goes up, and still has enough headroom that the system does not feel like it is fighting itself.

That is what turns a large subwoofer into a genuinely good car audio upgrade, rather than simply a large speaker in the trunk.

Also Check:

• Best 4-Channel Amp
• Best 5-Channel Amp
• Best 6×8 Speakers for Bass
• Best 6×9 Speakers for Bass
• Best 10 Inch Subwoofers for Deep Bass
• Best 6×9 Speakers for Bass and Sound Quality
• Best 6.5″ Car Speakers for Bass and Sound Quality
